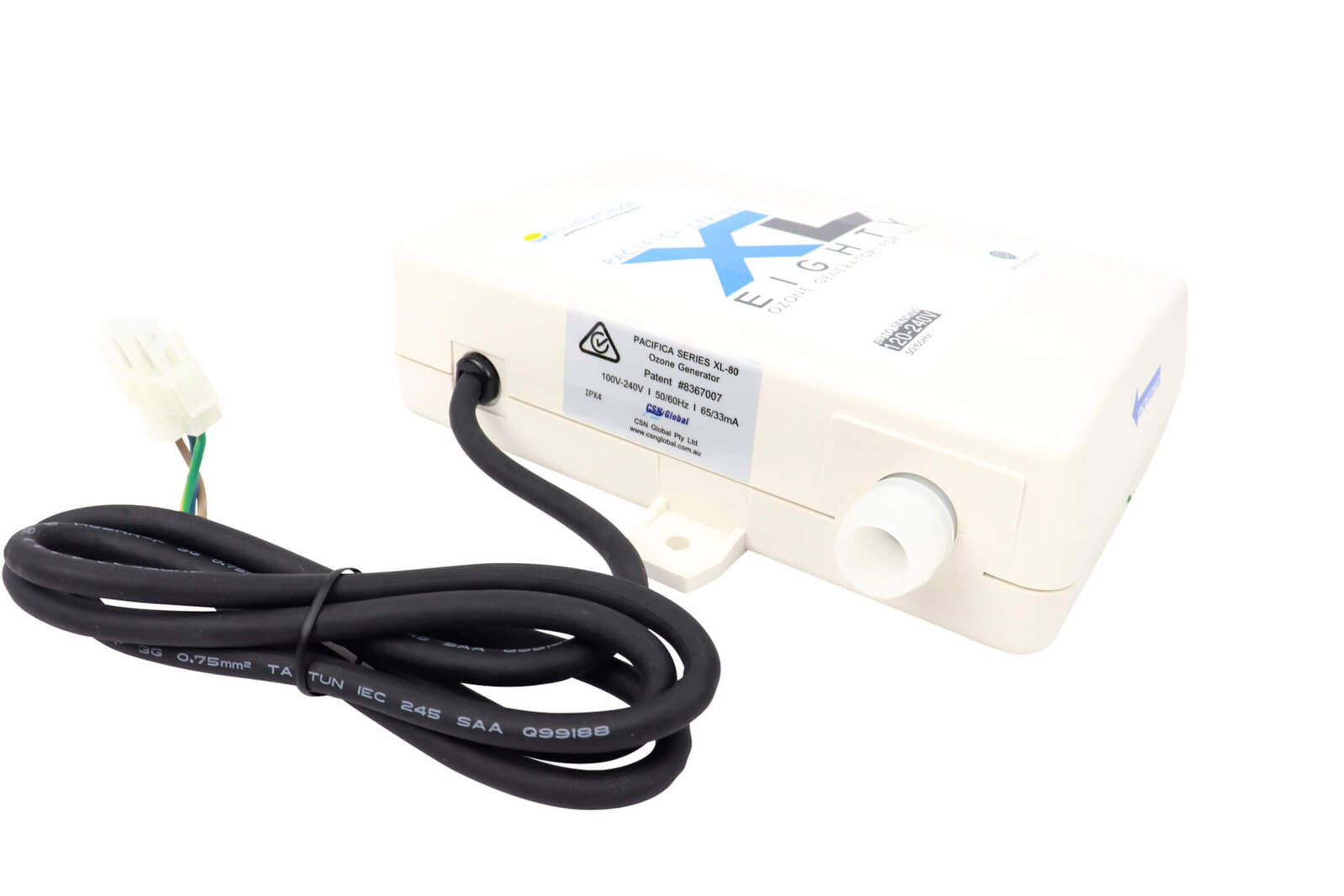

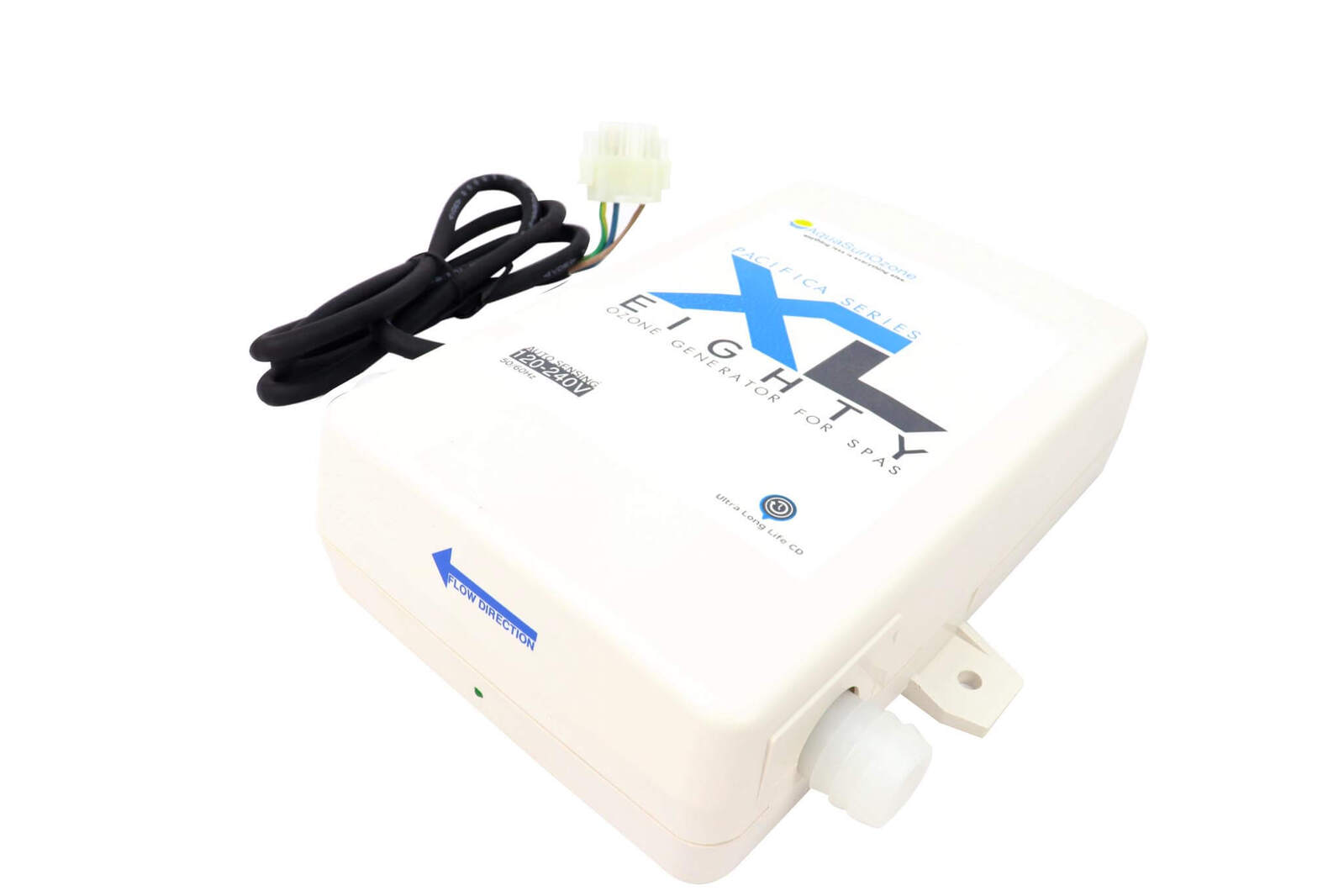

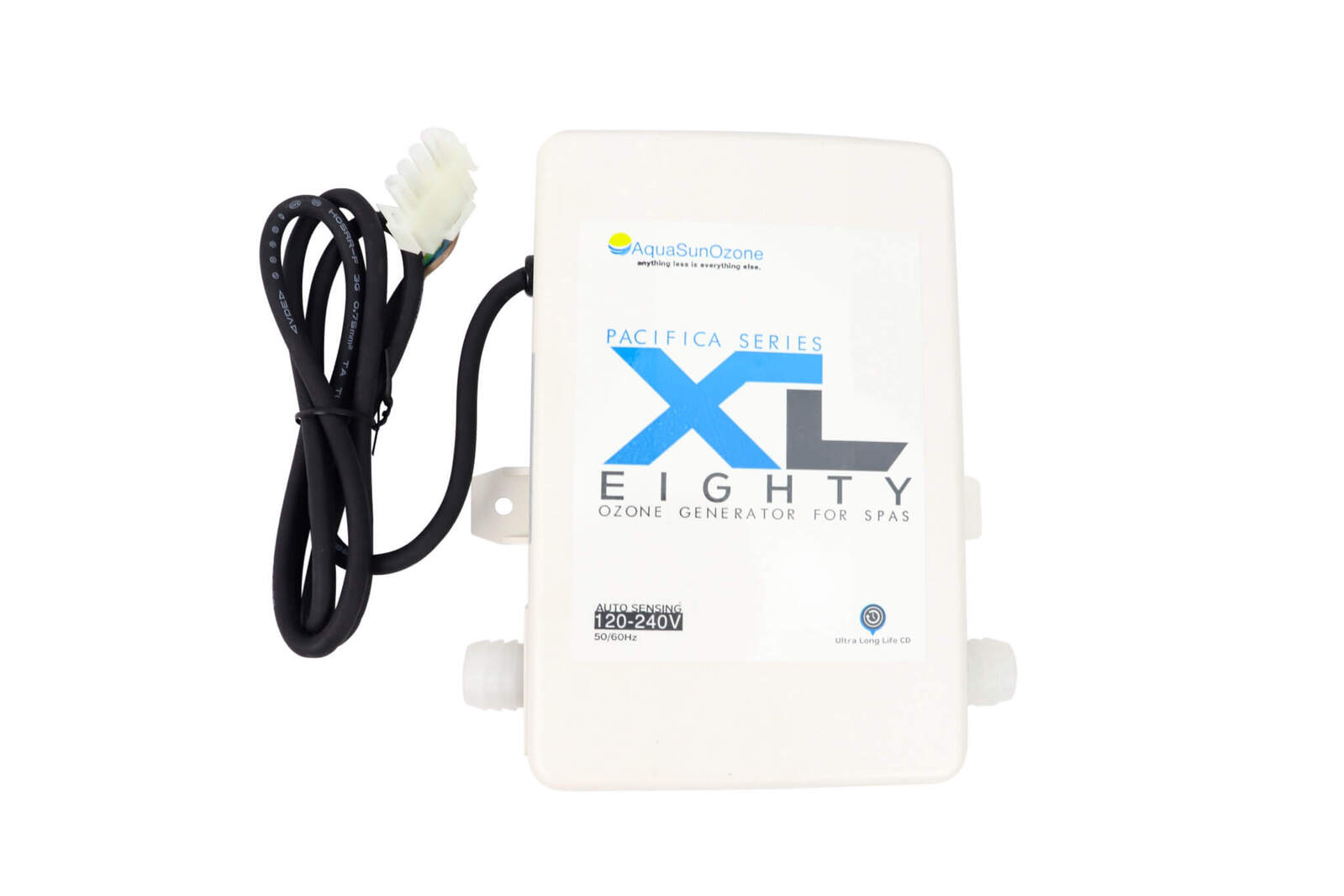

Spa Ozone Generator Aquasun XL-80 - Hot Tubs Spa Pools c/w Injector Ozonator

The Ultimate Replacement Spa Ozonator From AquaSun USA:

If you have a broken Ozonator fitted to your spa or wish to add one. The Aquasun XL-80 from the USA makes a top of the range choice. Already used on a number of models by Australian Spa manufacturers including Heritage, Sapphire Spas, Maax and Jaden Spas. This Ozonator does it all!! Fitted with an internal mixing chamber. This unit is up to 60% more efficient over standard Ozonators with little or no gas off. Preventing ozone smell while you enjoy your spa.

Enterprising Product Development:

Aqua Sun Ozone, International has the solution...no more improperly installed check valves, no more ozone tubing running to nowhere. The Model XL-80 is the world's first all-in-one ozone venturi system ready to be installed for domestic spas.

Aqua Sun Ozone newest product the XL-80 offers powerful sanitising action with the use of ozone. A plug-n-play design optimises user-friendly installation and comes with easy-to-install directions. The Model XL-80 features a dual check valve configured to prevent backflow. It is manufactured to minimise Nitric Acid build up and to maximise ozone concentration in water. Compact and reliable, this all-in-one sanitiser is setting new standards for portable spa sensitisation.

Aqua Sun Ozone Corona Discharge micro-ozone cell provides consistent ozone output with less heat, less energy usage & less nitric acid. There are no cartridges, chips or bulbs to replace.

Ozone Facts

• Ozone does not have to be purchased or stored; it is generated on-site and is introduced into the water automatically.
• Ozone does not affect the pH balance of water, thus minimising pH adjustments.
• Ozone helps reduce total dissolved solids in water so that the water does not have to be changed as often.
• Ozone is an extremely effective oxidiser and reduces chemical use dramatically.
• Reduces damage to pillows and covers due to chemical usage.
• Variable Output from 50mg to 100 mg

APPLICATION MANAGEMENT

• Out-gassing 30% less than industry standard injector; 60% less than comparable PVC injector.
• Integral cavity mixing chamber maximises mass transfer.
• Fewer bubbles introduced into spa water for quieter operation.
• Constructed of industry-proven PVDF ozone resistant material.
• Optimised for operation at 3-6 GPM

SPECIFICATIONS

• Integrated Ozone Injection Delivery System (IOIDS)
• Power Input: 100V - 240V; 50/60Hz
• Enclosure: ABS Plastic/PA-765A
• Dimensions: (L) 7.5" (W) 4.75" (H) 2.13"
• Weight: 1.89 lbs.
• Air Inlet: Filtered Ambient Air
• Built-In Backflow Prevention
• Ozone Output: 50mg/hr. Standard, Higher Output Optional
• Available in: Amp Plug Configurations

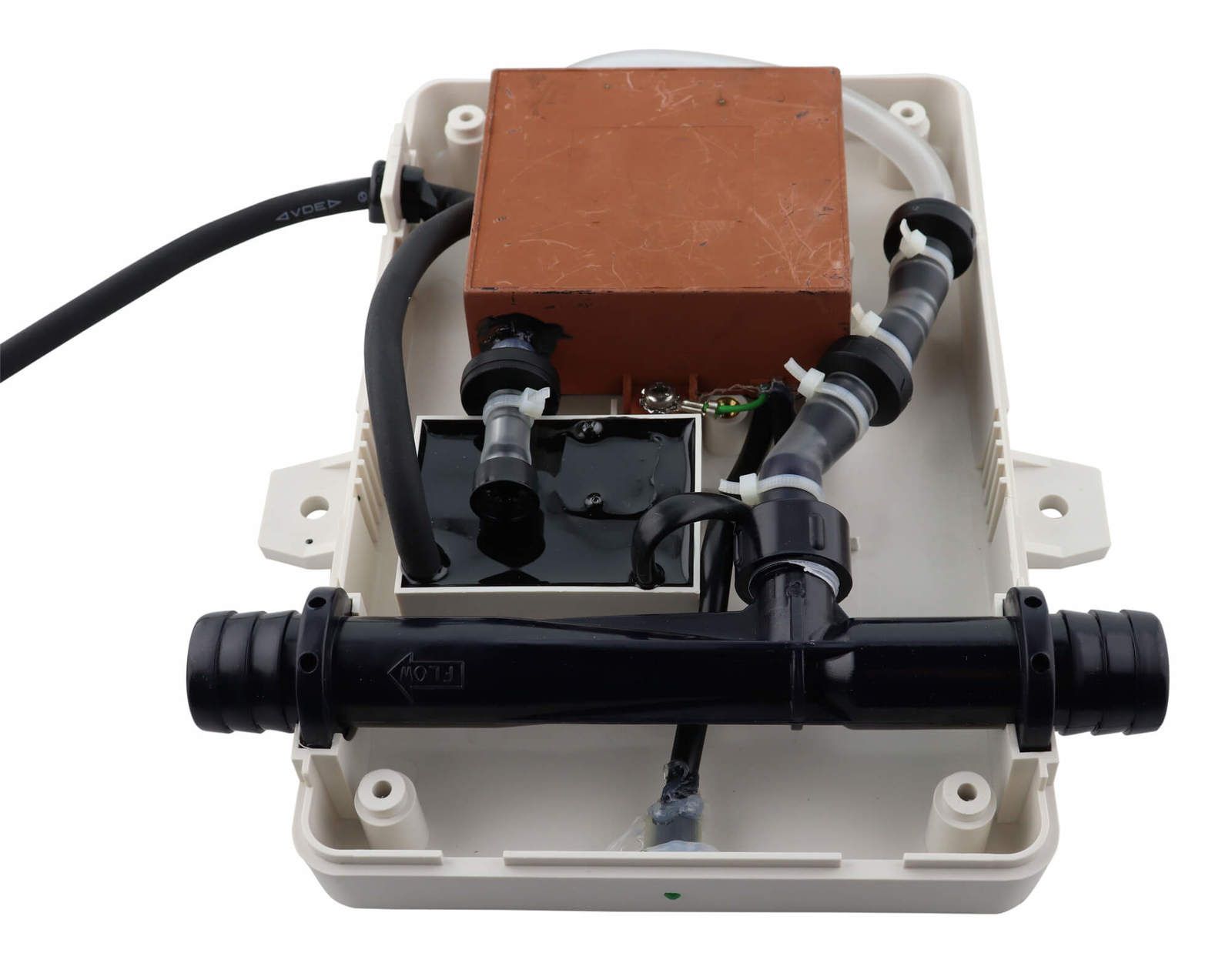

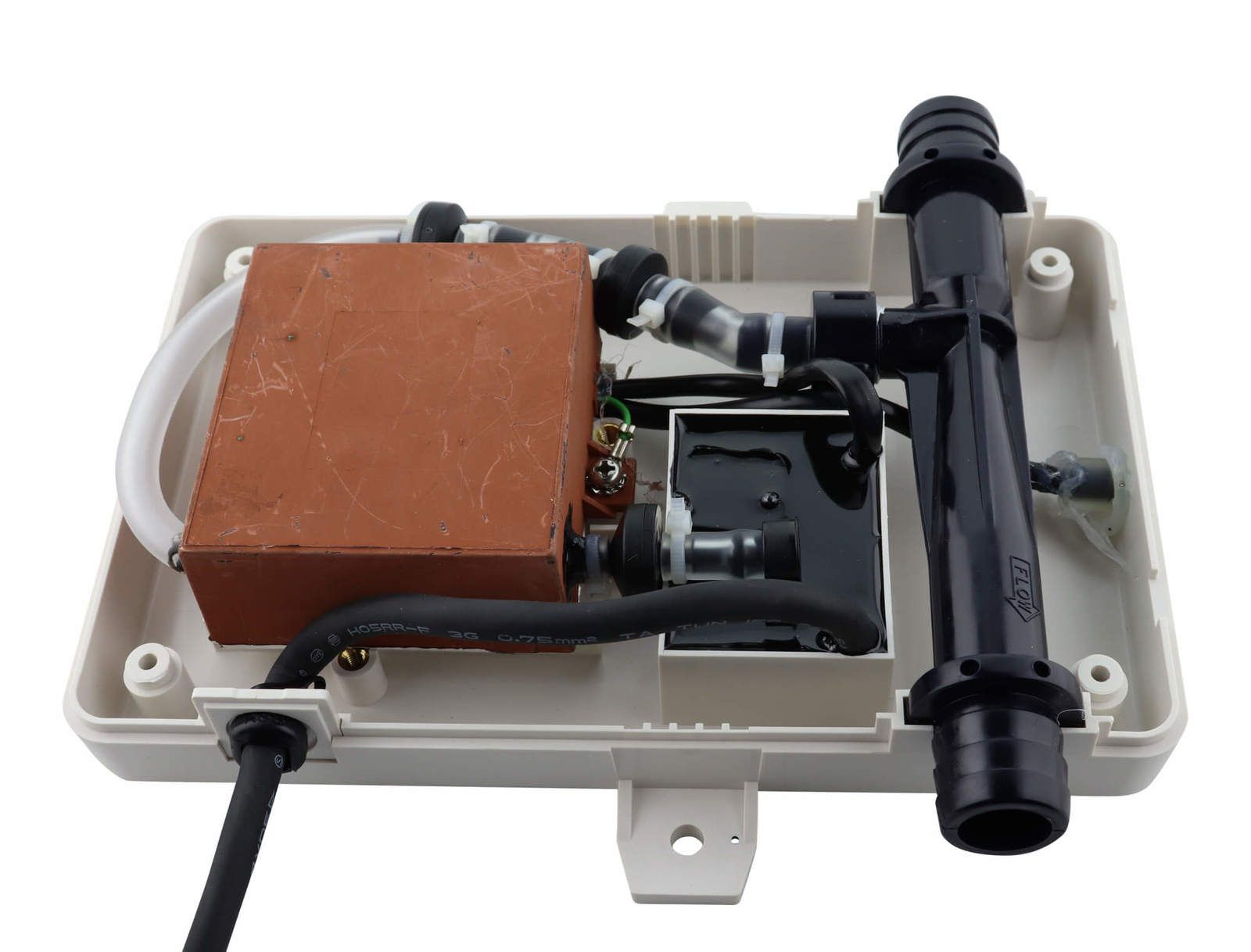

INTERNAL ACCESSORIES INCLUDED

• Venturi Injector
• Ozone Check Valve
• Tubing
